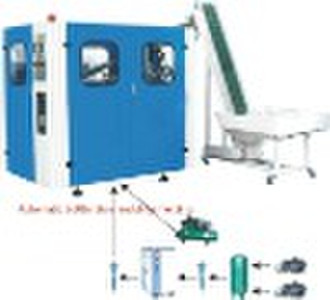

Full-Automatic Bottle Blow Molding Machine

blow molding machine features: A. Stable performance with advanced PLC. B. Conveying preforms automatically with conveyor. C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater. D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus. E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure. F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump. G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine. H. Strong clamping force with high pressure and double crank links to lock the mold. I. Two ways of operating: automatic and manual. J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand. K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process. L. Contamination is avoided for the bottle body. M. Ideal effect of the chilling with the chilling system. N. Easy installation and starting O. Low rejection rate: less than 0.3percent. Technical parameter TYPEITEMUNITHY-A4 technical dataContainerProduct material/PETContainer volumeL0.05-2.0Theoretic outputPsc/hr4200Preform lengthMM50-200Max height of bottleMM320MoldingPreform inner diametermm15-60Bottle diametermm35-110Max mold plate dimension (L × W)mm380 × 460Max mold thicknessmm200Air compressorHigh pressure compressorM3/Mpa1.2/30 × 3setLocking forceKN170Mold opening stroke (adjustable)mm200Low pressure compressorM3/Mpa2.0/10 × 1setsAir dryerM3/Mpa2.0/30 × 1setsMain machine electricityPowerKW30Voltage / frequencyV/Hz380/50hzMachine size and weightMain machine (L × W × H)M4.2 × 1.8 × 2.0Main machine weightT4.2Conveyor (L × W × H)M1.4 × 1.1 × 1.85Conveyor weightT0.4High pressure compressor (L × W × H)Kg1.90 × 0.75 × 1.50 × 3setsLow pressure compressor (L × W × H)M1.85 × 0.75 × 1.50High pressure air reservoir tank (D × H)M0.70 × 2.25/3.0Air dryer (L × W × H)M0.85 × 0.50 × 0.95Air filtersKg10 × 5pcCooling water: cooling water recycling system can be used with its power of 8 10 liter per minute and 2 3 kilos water pressureTotal power: 51.9 high pressure air volume (1m/min); low pressure air volume (1.2m/min)SafetyAuto emergency alarmSafety inter-locking device
